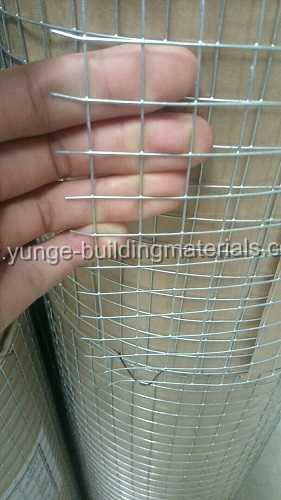

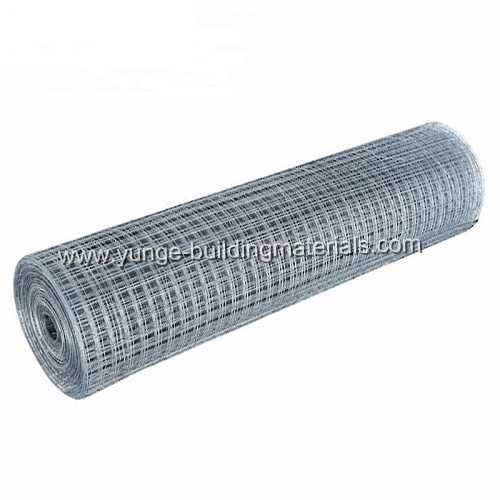

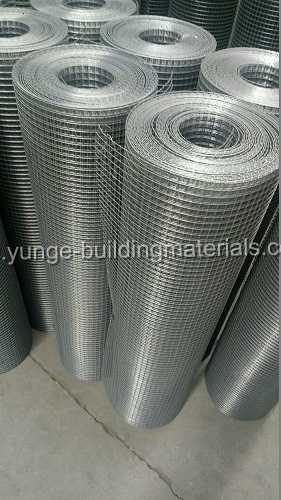

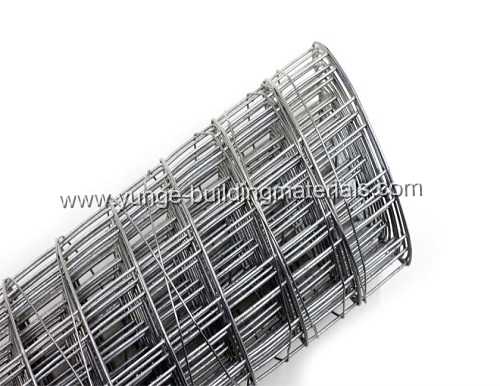

Hot dipped galvanized welded wire mesh

  • Material:Q195
  • Finishing:hot dipped galvanized
  • Length:30m,100 feet
  • Width:0.5-2.5m
  • Product description:
  • INQUIRY

Hot dipped galvanized welded wire mesh

Quick Details

Material:Q195


Zinc coating:Hot dipped galvanized--20-60g/m3

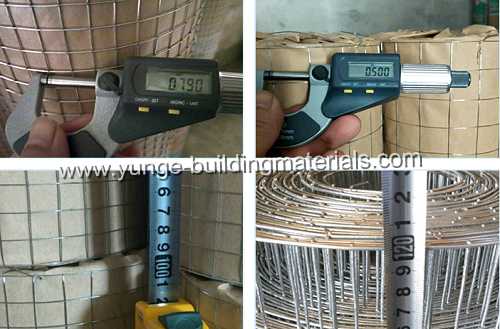

Diameter:bwg 15 gauge,1.5mm


Mesh opening:12.5*12.5mm 1/2 inch galvanized welded wire mesh

Width:0.5-2.5m

Length:30m,100 feet

Finishing:hot dipped galvanized

Supply Ability:15000 Square Meters per Month

Lead time: 7-30 Days(Depend on your quantity)

Wire mesh fence production process:Wire drawing, annealing, rust removing, acid washing, Fencing wire Cleaning, Drying, Welded Black fence panel, Galvanizing, CleaningDrying,PVC Spray or Coated, Inspecting Quality, Packing cargos, Shiping to destination


Techniques:Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting.Usually galvanized after welding is better than galvanized before welded,Welded before galvanized wire mesh is more expensive than welded after galvanized welded wire mesh.


Application:

Galvanized welded wire mesh is used as construction reinforcement,or in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction fields, etc. It also finds applications in shields on machinery or equipment, wire fence for livestock or flowers and trees, fence for protecting windows, fence for pathways, poultry cage, basket for holding eggs,foodstuff  basket, paper basket or decorative functions in home or office.With larger diameter and opening,the galvanized welded wire mesh could be used as mesh fencing as well.



Packaging Details:

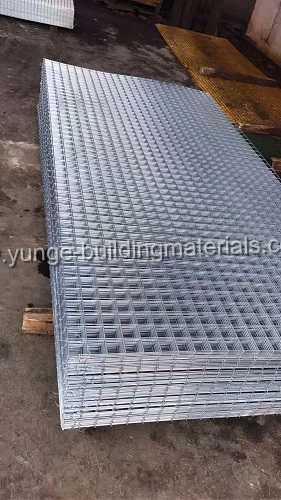

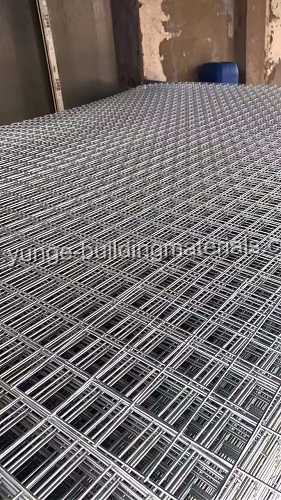

Fence panel: plastic film + metal/wooden pallet

Fence post: plastic bag + metal/wooden pallet (with rainhat installed)

Fence accessories: plastic bag + carton box(clips & screws)


MESH WIRE DIAMETER WIDTH LENGTH
(INCH) (MM) (BWG)
1/4" × 1/4" 6.35 × 6.35 22,23,24,25 24", 36", 48", 60",72"
OR
0.5M, 0.6M, 0.7M, 0.8M, 1.0M, 1.2M, 1.5M, 1.8M, 2.0M
10', 25', 50', 100', 150'
OR
5M, 10M, 25M, 30M, 45M
3/8" × 3/8" 10.6 × 10.6 19,20,21,22
1/2"× 1/2" 12.7 × 12.7 16,17,18,19,20,21,22,23,24
5/8" × 5/8" 16 × 16 18,19,20,21,22
3/4" × 3/4" 19 × 19 16,17,18,19,20,21
1" × 1/2" 25.4 × 12.7 16,17,18,19,20,21
1" × 1" 25.4 x 25.4 14,15,16,17,18,19,20
1-1/2" × 1-1/2" 38 x 38 14,15,16,17,18,19
1" X 2" 25.4 × 50.8 14,15,16,17,18,19
2" × 2" 50.8 × 50.8 14,15,16,17,18
2" × 3" 50.8 x 76 14,15,16
4" × 4" 101.6 x 101.6 12,14,15,16
6" × 6" 152.4 x 152.4 10,12,14,16



Specification List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

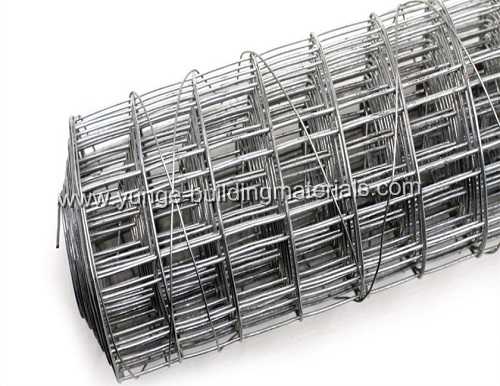

Galvanized/PVC Coated Fencing Mesh
Opening Wire Diameter
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
5" x 5" 127mm x 127mm 2.0mm-4.0mm
6" x 6" 152.4mm x 152.4mm 2.0mm-4.0mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.5m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

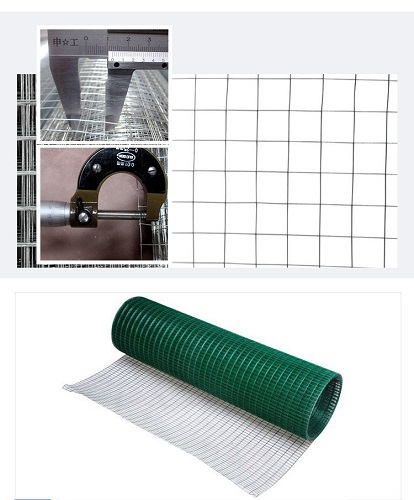

PVC Coated Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.









Packing:
