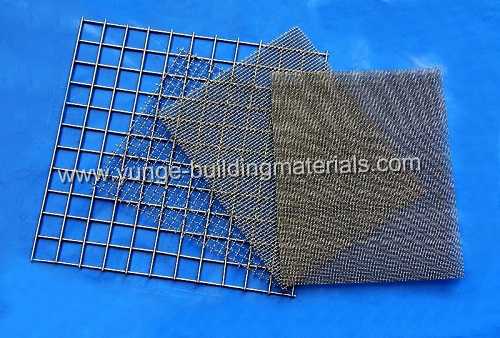

304 316L Stainless Steel Welded Wire Mesh

304 316L Stainless Steel Welded Wire Mesh

Quick Details

Material:Stainless Steel Wire

Mesh Opening:1/4" x 1/4"--6" x 6"

Wire Diameter:0.5-8mm

Width(feet):2-8.2

Type:Welded Mesh

Hole shape:Square Hole

Roll size:1x30m,1.2x30m,or as your request

Galvanized type:Galvanized after welding,galvanized before welding

Usage:Animal fence,poultry cage,construction,gabions,filter

Supply Ability:1000 Rolls per Day

Mesh Opening	Stainless steel welded wire mesh in roll
Mesh Opening	Wire Diameter	Width(feet)
1/4" x 1/4"	BWG23	2-7
3/8" x 3/8"	BWG19,20,21,22	2-7
1/2" x 1/2"	BWG16,17,18,19,20,21,22,23,24	2-7
3/4" x 3/4"	BWG16,17,18,19,20,21,22	2-7
1" x 1/2"	BWG16,17,18,19	2-7
1" x 1"	BWG14,15,16,17,18,19,20,21	2-7
1" x 2"	BWG14,15,16	2-7
2" x 2"	BWG14,15,16,18	2-7
2" x 2"	BWG10,11,12	2-8.2
We can customize special size according to your demand

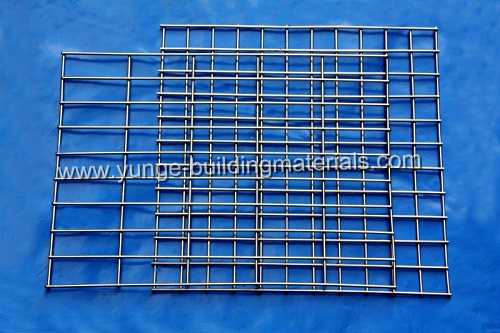

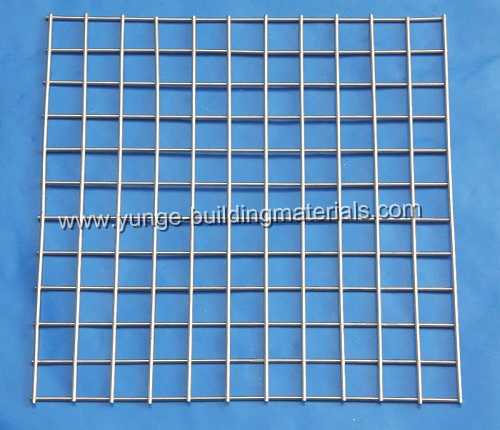

Mesh Opening	Stainless steel welded wire mesh panel
Mesh Opening	Wire Diameter	Width(feet)
2" x 3"	BWG8,10,12	2-8.2
2" x 4"	BWG6,8,11,12	2-8.2
3" x 3"	BWG6,8,10,11	2-8.2
4" x 4"	BWG3,4,5,6,8,9,10	2-8.2
4" x 6"	BWG3,4,5,6,8,9,10	2-8.2
6" x 6"	BWG0,2,4,6,7,8,9	2-8.2
