Double-flanged long radius 90 degree bend

Standard :ISO2531-1998,EN545-2006/EN598
Application:Water supply project, Drainage, Sewerage, Irrigation ,Water pipeline
Inner coating:Cement lining according to ISO4179/FBE coating (Fusion bonded Epoxy Coating)
Outside coating:Zinc+bitumen coating according to ISO8179/FBE coating (Fusion bonded Epoxy Coating)
Product description：
INQUIRY

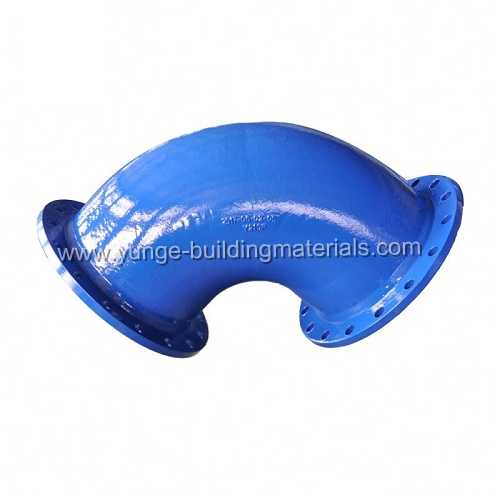

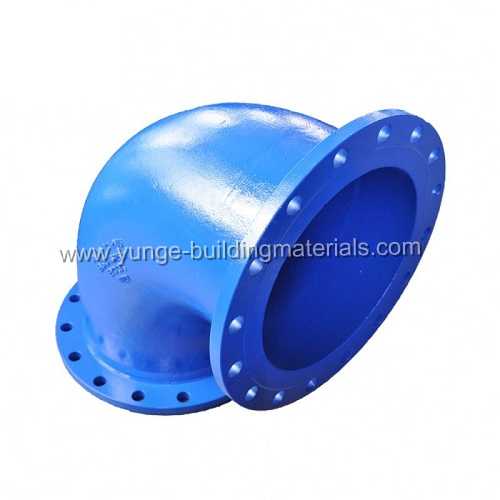

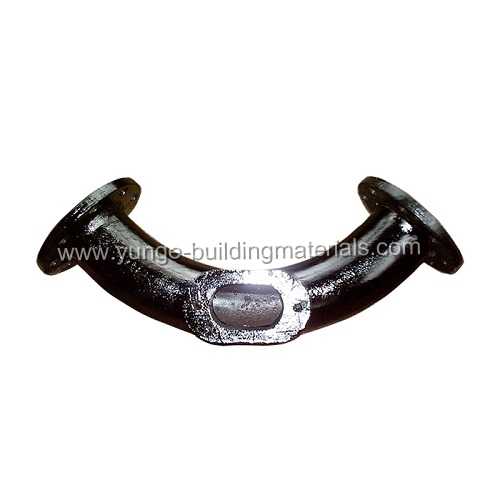

Double-flanged long radius 90 degree bend

Quick Details

Size:DN80-DN2000mm

Standard:ISO2531-1998,EN545-2006/EN598, Class:K8,K9,K12,k14

Length:6M for bulk shipment, 5.7M for 20' or 40' container shipment

Inner coating:Cement lining according to ISO4179/FBE coating (Fusion bonded Epoxy Coating)

Outside coating:Zinc+bitumen coating according to ISO8179/FBE coating (Fusion bonded Epoxy Coating)

Zinc coating:At least 130g/m2 as per ISO8179

Working pressure:PN10/PN16/PN25 as per standards

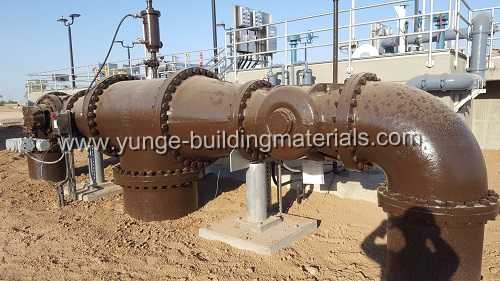

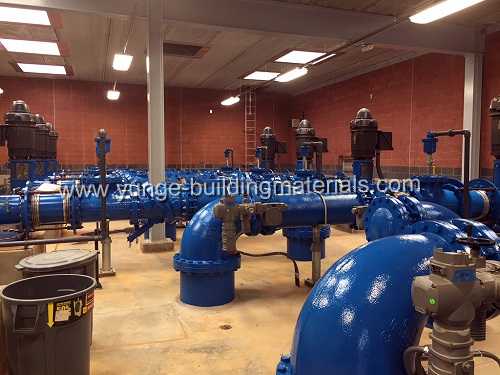

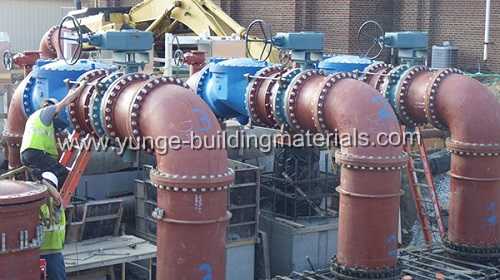

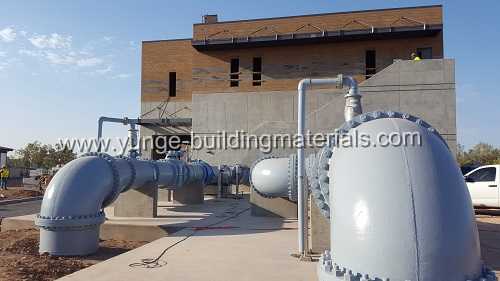

Application:Water supply project, Drainage, Sewerage, Irrigation ,Water pipeline

Features:High strength,lighter than gray iron,corrosion resistance,no furring,small flow resistance,easy fixing,long life time

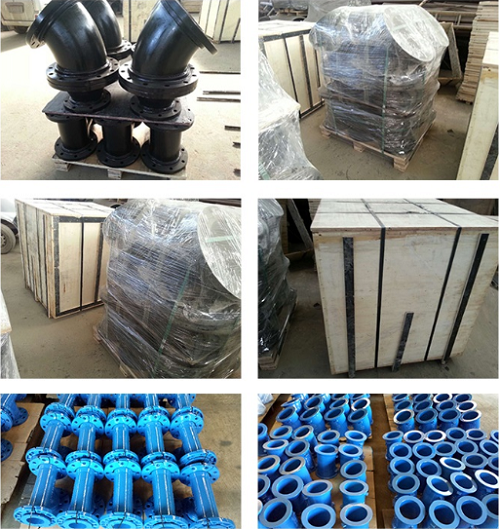

Packaging:Wooden cases or pallets

Lead time:25-30 days after receiving the deposit

Specification:

Double-flanged long radius bend
DN	L	Weight
	MM	(kg)
		PN10	PN16	PN25
80	380	14.5	14.5	14.5
100	400	18	18	19
125	425	23.5	23.5	24.1
150	450	30.1	30.1	32.1
200	500	45.9	45.4	49.6
250	550	66.4	65.2	73.2
300	600	89.5	90.8	101
350	660	116	122	138
400	700	117	129	152
DN	L	Weight
	mm	(kg)
		PN10	PN16	PN25
450	750	184	200	221
500	800	227	253	276
600	900	326	377	408
700	1000	466	492	-
800	1100	632	666	-
900	1200	816	854	-
1000	1300	1048	1190	-
1100	1400	1315	1385	-
1200	1500	1627	1737	-
