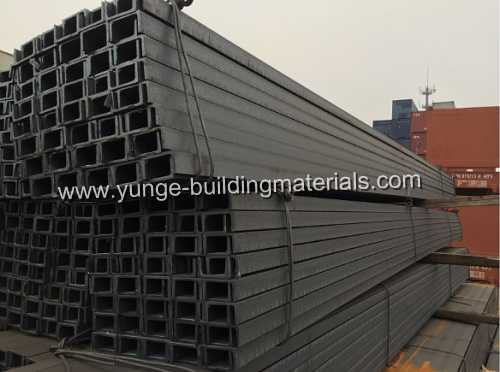

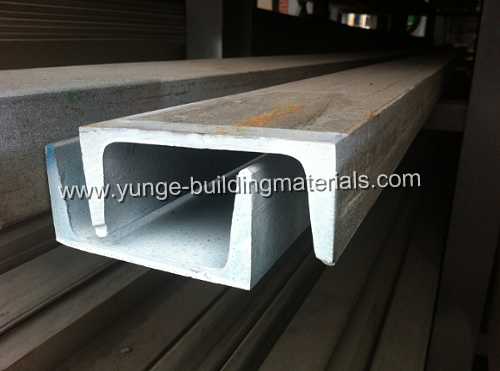

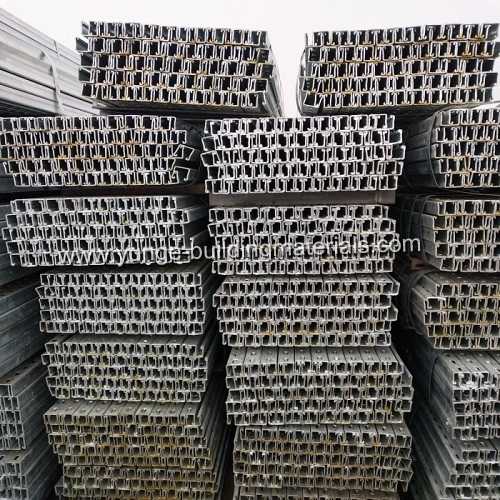

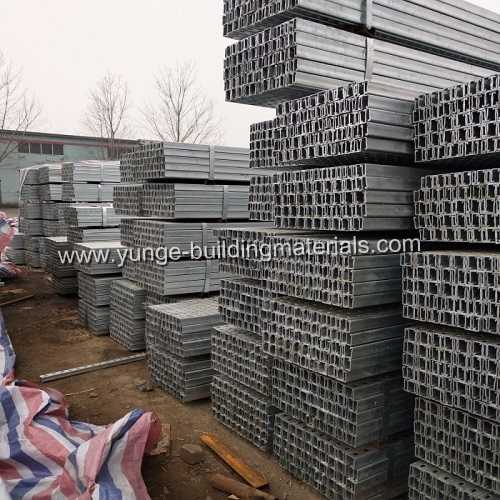

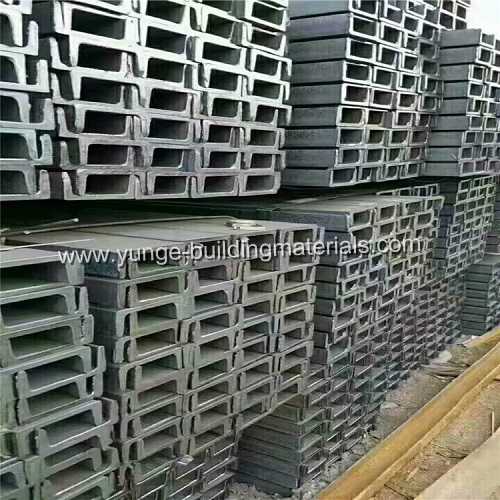

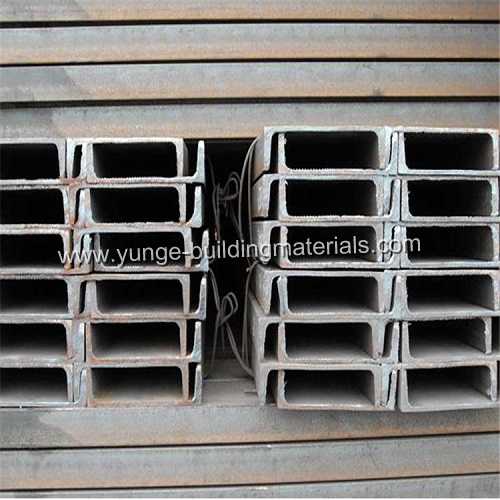

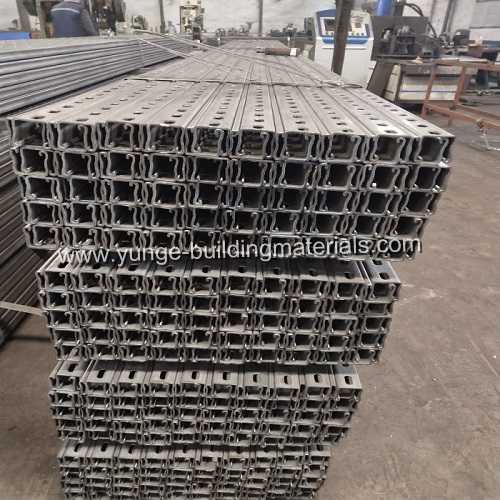

U channel structural section beam steel
- Material:Low-carbon Steel
- Grade:A36, S235jr, St37-2,St52, S355, SS400, Q235, Q195
- Standard:JIS, GB, ASTM, EN, DIN
- Length:6m, 9m, 12m or as your requirement
- Product description：
U channel structural section beam steel
Quick Details
Material:Low-carbon Steel
Grade:A36, S235jr, St37-2,St52, S355, SS400, Q235, Q195
Standard:JIS, GB, ASTM, EN, DIN
Dimensions:50*37*4.5mm, 400*104*14.5mm
Length:6m, 9m, 12m or as your requirement
Technique:Hot rolled, cold bending
Web width:50-400mm
Flange width:37-104mm
Thickness:4.5mm~14.5mm

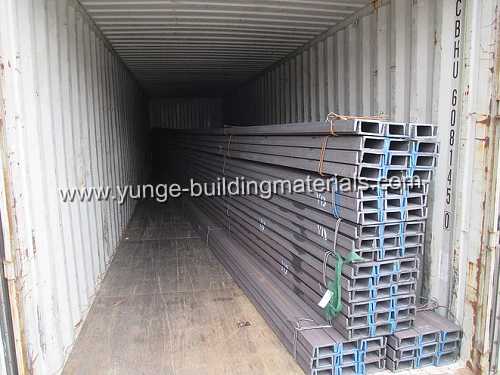

Packaging:Sea worthy packing.Big OD: in bulk;Small OD: packed by steel strips,woven cloth with 7 slats
Specification:
| U Channel Beam Steel | |||
| Depth x Flange (mm) | Web thickness (mm) | Flange thickness (mm) | Theoretic weight (kg/m) |
| 50x25 | 3.00~5.00 | 6 | 2.37~3.46 |
| 75x40 | 3.8 | 7 | 5.3 |
| 75x40 | 4 | 7 | 5.6 |
| 75x40 | 4.5 | 7 | 5.85 |
| 75x40 | 5 | 7 | 6.92 |
| 76x38 | 5.1 | 6.8 | 6.7 |
| 100x50 | 3.8 | 6 | 7.3 |
| 100x50 | 4.2 | 6 | 8.03 |
| 100x50 | 4.5 | 7.5 | 8.97 |
| 100x50 | 5 | 7.5 | 9.36 |
| 102x51 | 6.1 | 7.6 | 10.42 |
| 125x65 | 5.2 | 6.8 | 11.66 |
| 125x65 | 5.3 | 6.8 | 12.17 |
| 125x65 | 5.5 | 8 | 12.91 |
| 125x65 | 6 | 8 | 13.4 |
| 127x64 | 6.4 | 9.2 | 14.9 |
| 150x75 | 5.5 | 7.3 | 14.66 |
| 150x75 | 6.5 | 10 | 18.6 |
| 152x76 | 6.4 | 9 | 17.9 |
