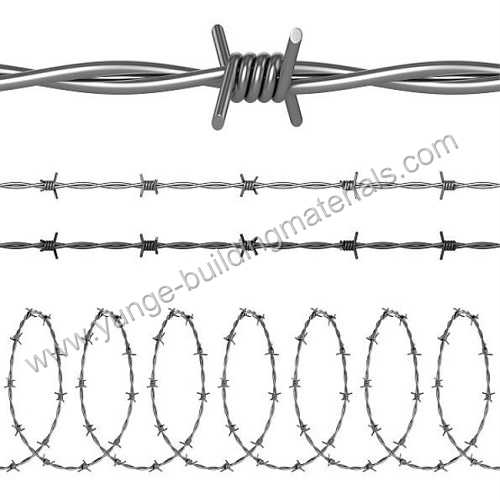

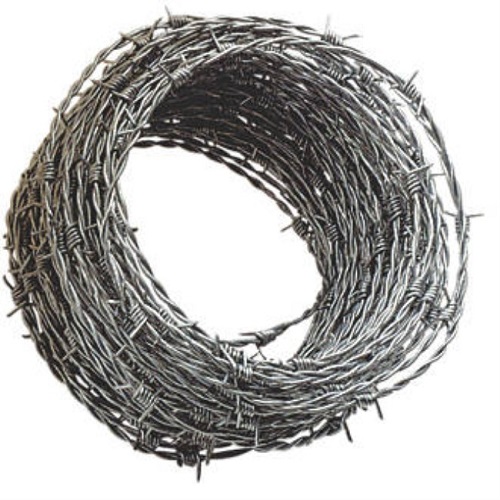

Hot Dipped/Electro Galvanized Barbed Wire

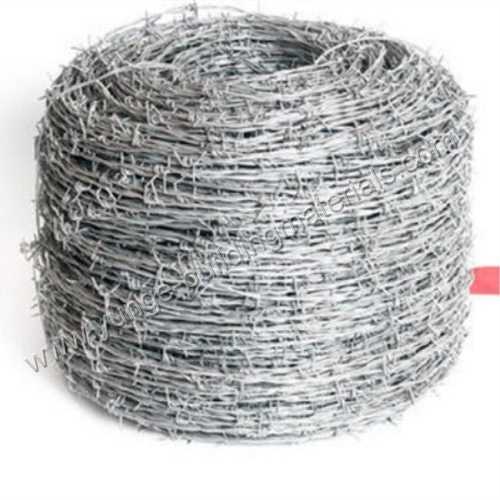

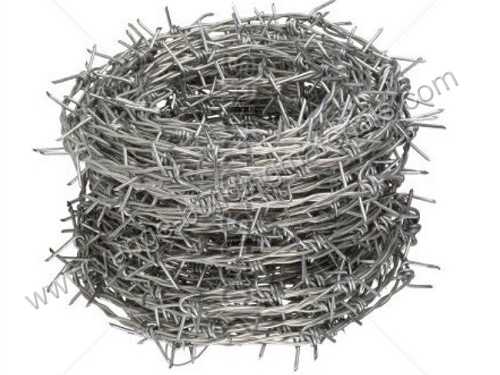

Hot Dipped Galvanized Barbed Wire

Quick Details

Material:

(1)Electro galvanized core wire and blade

(2)Hot-dipped galvanized core wire and blade

(3)Stainless steel core wire and blade

(4)PVC coated core wire and blade

(5)Hot-dipped galvanized core wire+stainless steel blade

Strand wire diameter:1.5-3mm

Barbed wire diameter:1.5-3mm

Zinc coating weight:60gsm/240gsm/12gsm

Barb Length:1.5-3cm

Barb distance:7.5-15cm

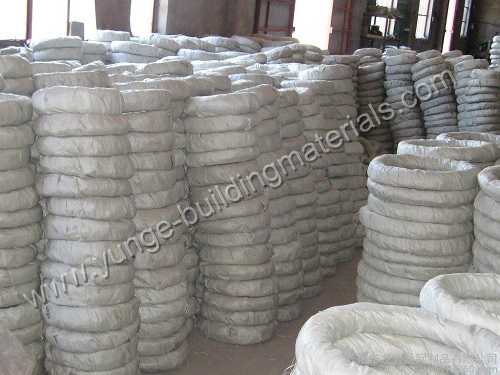

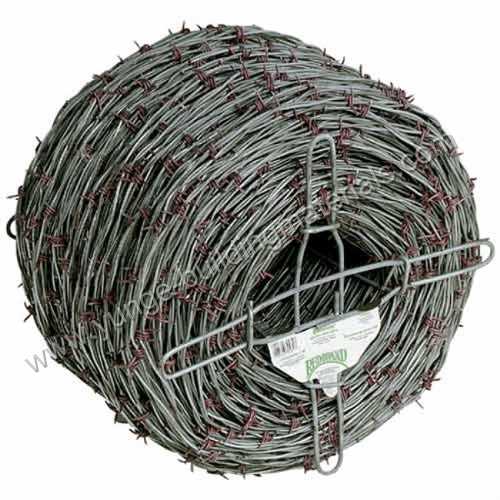

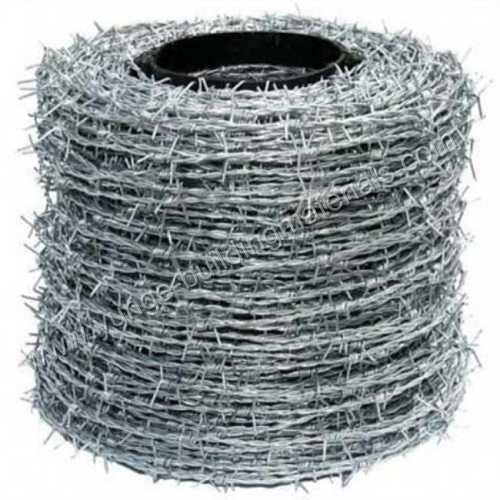

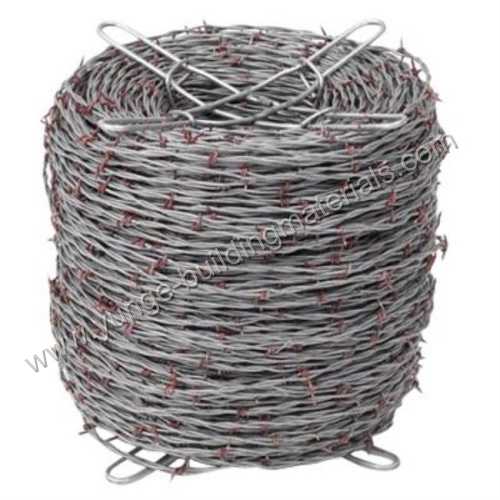

Coil weight:5-100kgs/coil

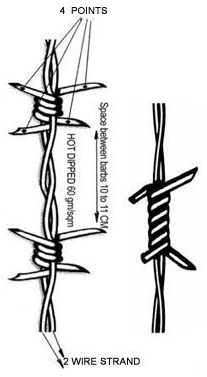

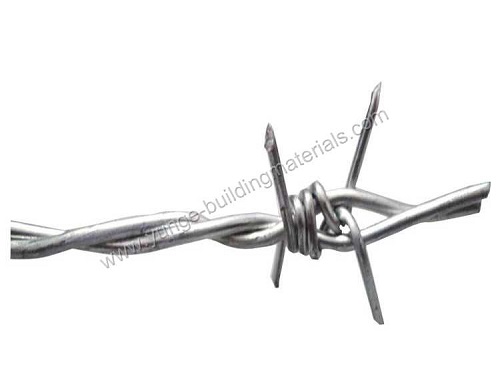

Barbs Type:2 strands,4 points

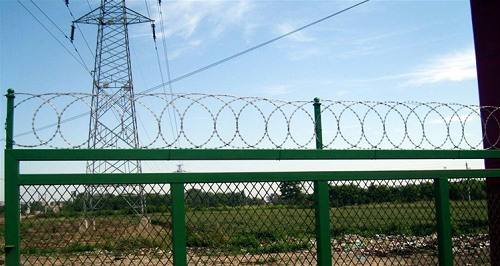

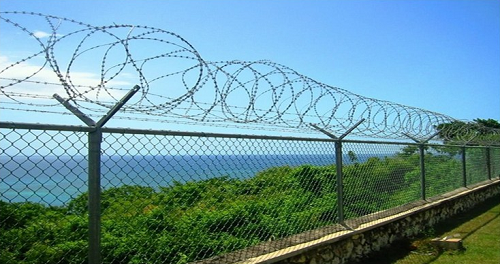

Feature:Anti-climb, protection mesh

Patten:single twist,normal weave,twist weave

Surface Treatment:Electro/hot dipped galvanized or PVC Coated

PVC coating thickness:0.4-0.6mm

Color:grey,green or as requirement

Length per coil:50m,100m or as requirement

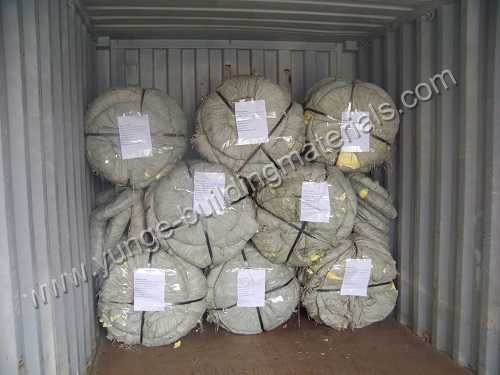

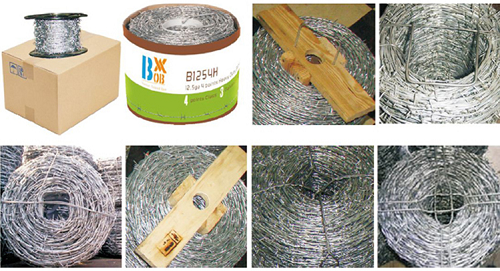

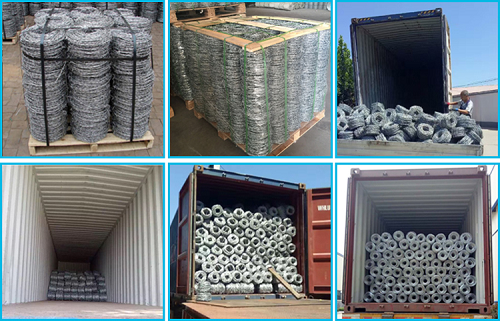

Packing:as requirement

Supply Ability:1000 Tons per month

Lead Time:15 days after receiving deposit

MOQ: We accept small orders

Barbed Wire Specification
Type	Wire Gauge (SWG)		Barb Distance (cm)	Barb Length (cm)
Electro-galvanized barbed wire;Hot dipped galvanized barbed wire	10# x 12#		7.5-15	1.5-3
	12# x 12#
	12# x 14#
	14# x 14#
	14# x 16#
	16# x 16#
	16# x 18#
PVC coated barbed wire;PE barbed wire	before coating	after coating	7.5-15	1.5-3
	1.0mm-3.5mm	1.4mm-4.0mm
	BWG11#-20#	BWG8#-17#
	SWG11#-20#	SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
