Hot Dip Galvanized Welded Gabion Box/Gabion Wire Mesh Basket/PVC Coated Gabion Garden Fence Stone Gabion Cage

  • Material:Low-Carbon Iron Wire
  • Aperture:50x50mm,75X75mm,100X100mm
  • Surface treatment:Hot Dipped Galvanized
  • Application:Retaining wall structure, rock fall and soil protection
  • Product description:
  • INQUIRY

Hot Dip Galvanized Welded Gabion Box/Gabion Wire Mesh Basket/PVC Coated Gabion Garden Fence Stone Gabion Cage

Quick Details

Aperture:50x50mm,75X75mm,100X100mm

Material:Low-Carbon Iron Wire

Surface treatment:Hot Dipped Galvanized

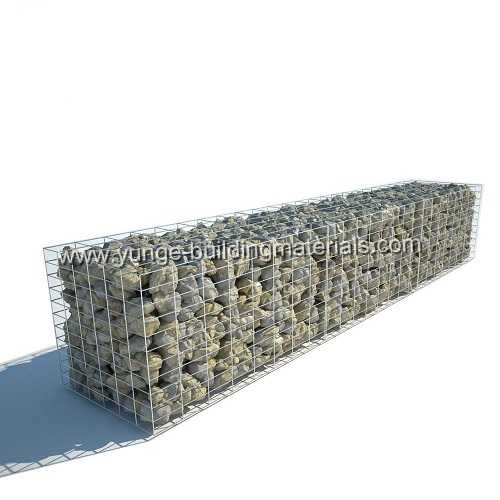

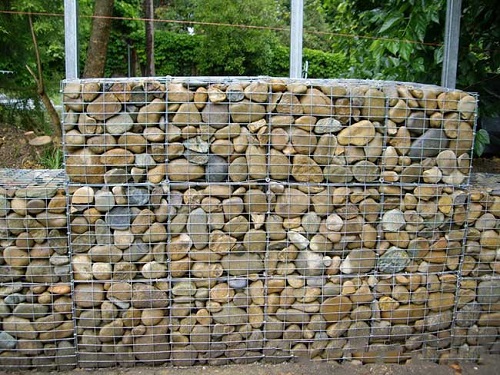

Application:Welded gabion box can be widely used in retaining wall structure, rock fall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.


How to install Welded gabion box?

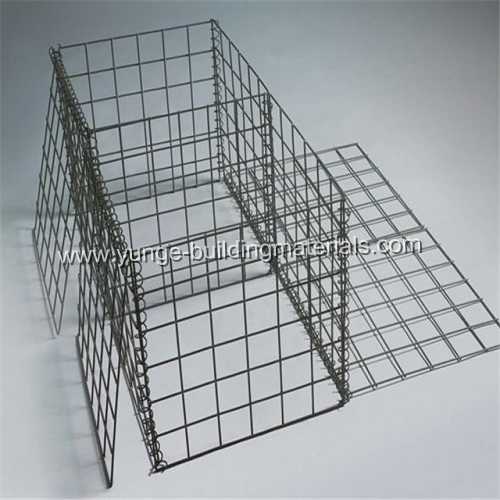

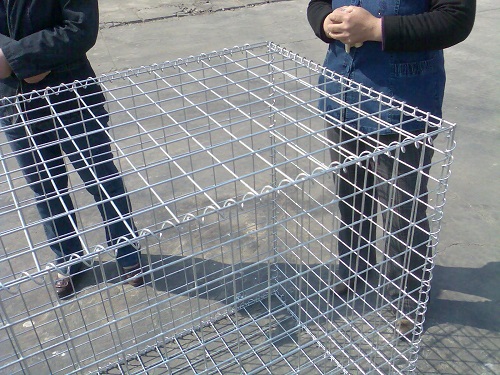

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

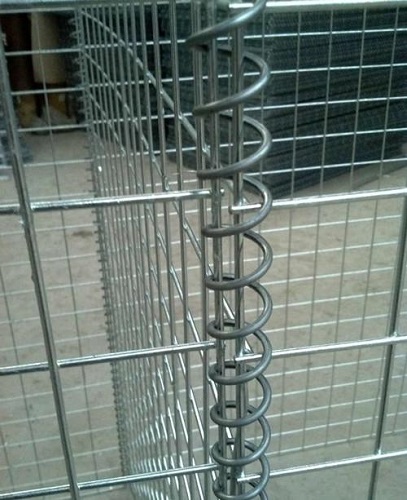

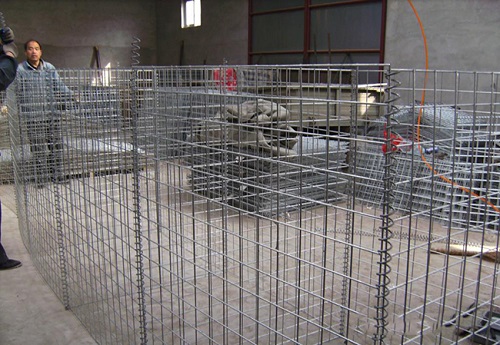

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

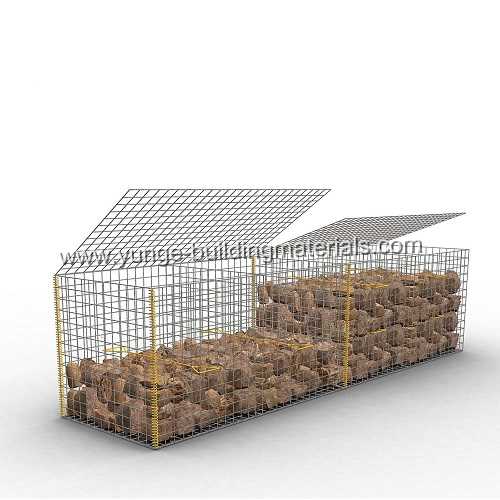

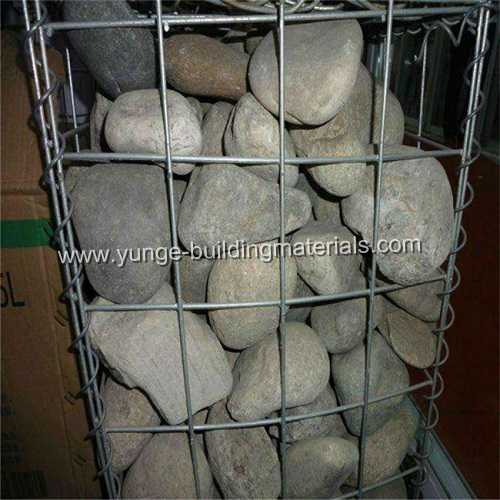

Step 4. Gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.


Item Wire diameter Aperture Box size
Welded gabion box 4mm 50x50mm,50x100mm 0.3x0.3x2m, 0.5x0.5x0.5m, 0.5mx1mx2m etc
Welded gabion box 5mm 50x50mm, 50x100mm, 75x75mm 0.5x0.5x0.5m, 0.5mx1mx2m,2mx1mx0.3m etc
Welded gabion box 6mm 50x100mm, 100x100mm 0.5x0.5x0.5m, 0.5mx1mx2m
